BIOMETRIYA BMBT

MULTI-FACTOR AUTHENTICATION HIGHLY SECURE PORTABLE WATERPROOF

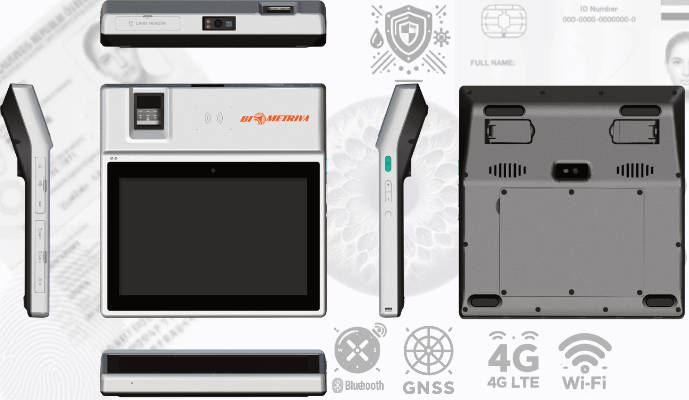

The unique BIOMETRIYA multi biometric tablet BMBT 3.0 utilizes the best, cutting-edge sensors to capture high quality biometric input, fingerprint, iris, face, contact and contactless card for identification and verification in various outdoor environments.

BIOMETRIYA BMBT 3.0 is an android 11 tablet with rich features such as a powerful qualcomm 8 core cpu, 8 inch high-definition led screen, smart card, nfc, multi-biometrics recognition capacity indoors and outdoors.

It is a state-of-the-art, easy deployment solution readily increasing production for border control, national/citizen identity verification, sim card distribution, voting and so much more.

The possibilities are endless...

PHISICAL SPECIFICATION

Dimensions

212.90 x 208.05 x 43.90 mm / 8.38 x 8.19 x 1.728 in

Weight

873 g / 30.8 oz. (for standard version)

Display

8" IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800

CPU & RAM

Octa (8) Core CPU 2.0Ghz, 3G RAM + 32G ROM

Power

Main battery: Li-ion, rechargeable, 10,000 mAh
Standby: over 500 hours
Continuous use: over 9 hours (depending on user environment)
Input: 100-240V 50/60hz
Output: 9V/2A Fast Charging Capability

Expansion Slot

2 slot for Micro SIM card, PSAM card slots

Interfaces

USB type A and USB Type-C

Sensors

Accelerometer sensor, light sensor, geomagnetic sensor; gyroscope

Notification

Sound. LED indicator

Audio

1 microphone; 1 speaker; receiver

Ingress Protection

IP-65

COMMUNICATION SPECIFICATION

WLAN

Support 802.11 a/b/g/n/ac/d/e /h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 49,153,157,161,165), Depends on local regulations; Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK-EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP- GTC, etc

WWAN (Europe, Asia)

3G: CDMA EVDO: BCO TD-SCDMA: B34/B39 WCDMA: B1/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20

WWAN (America)

3G: WCDMA: B2/B4/B5 4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B

Vo-LTE

Support VoLTE HD video voice call

Bluetooth

Bluetooth 5.0

GNSS

GPS/AGPS. GLONASS. Galileo. Beidou. internal antenna

DATA COLLECTION SENSORS SPECIFICATION

Rear Camera

13 Mega pixels + LED Flash

Front Camera

8 Mega pixels

Contact Card Reader

ISO 7816 Class A, B and C (5V/3V/1.8V) card

1 D/2D Symbology

1D, 2D, PDF417, QR code, Code 39, Code 128, DataMatrix, UPC-A, etc.

NFC

ISO/EC 14443 A/B

Biometric - Fingerprint Recognition

Optical FAP 30

Biometric - Facial Recognition

Support

Biometric - Iris Recognition

Optional

OPERATING SYSTEM SPECIFICATION

OS

Android 11 and above

Supported MDM

AirWatch

SDK

Available

Language

JAVA

Tool

Eclipse / Android Studio

USER ENVIRONMENT SPECIFICATION

Operating Temp

32 OF to 122 oF / 0 °C to 50 °C

Storage Temp

-4 °F to 140 °F / -20 °C to 60 °C

Humidity

Operating: 10% RH - 75% RH noncondensing, Storage: 5% RH - 85% RH noncondensing

Sealing

IP65 per IEC sealing specifications

Other Certification

CE, FCC, RoHS

DOWNLOAD DATASHEET
