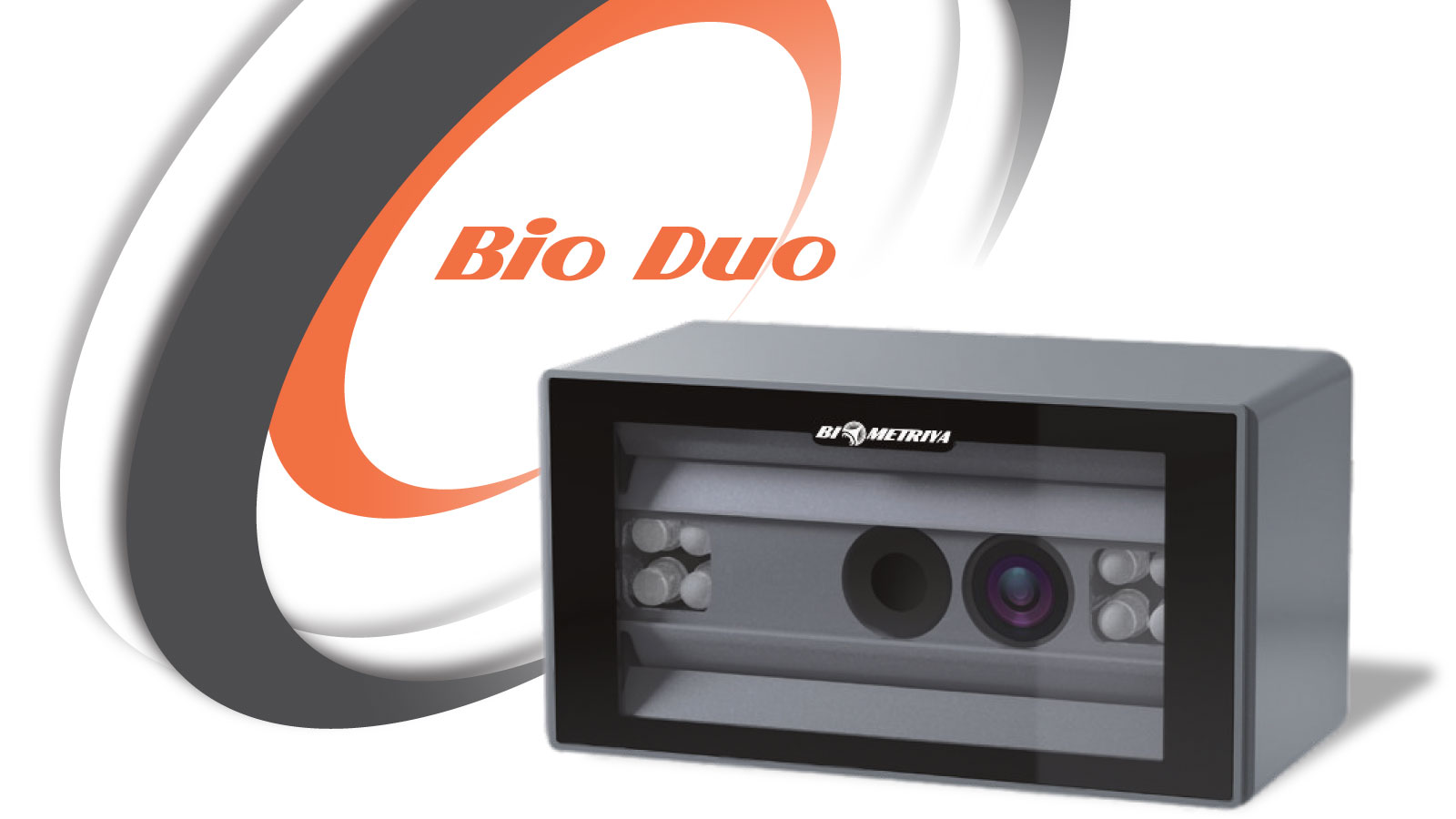

BIOMETRIYA BIO DUO

Bio Duo

Biometriya Bio Duo has completely reimagined physical access.

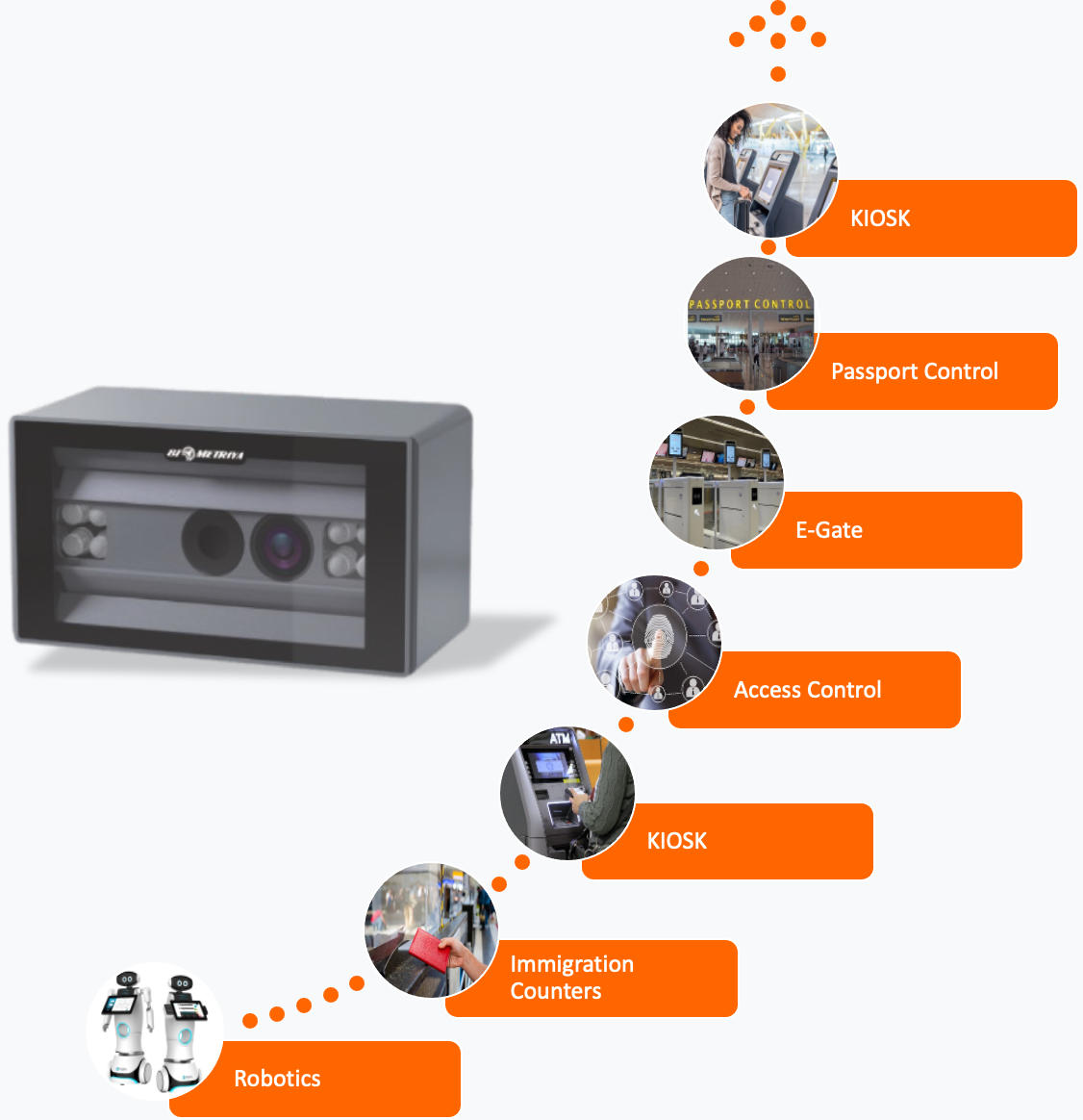

A leading-edge facial & IRIS identity solution for diverse applications like Critical infrastructure, Border Control, National Identity programs, and frictionless throughput access control, it leverages superior AI algorithms at each level - from image acquisition and liveness detection.

Bio Duo captures pristine quality IRIS and facial images (5MP) that exceed standards. With 25 frames captured simultaneously via two cameras.

With a large capture range from 35-65cm horizontally, it enables an easy usage experience.

Biometriya Bio Duo allows people to use face masks without compromising security.

Bio Duo is convenient and easy to set up and use with an effortless interface with apps and sdks for integration.

CORE SPECIFICATION

Resolution

3 million pixels (dynamic range >100dB), Near Infrared camera: 2M and above resolution

Type

RGB 5MP face camera plus Infrared with Binocular wide dynamics

Identification Mode

Iris recognition / Face recognition / Multi-model face fusion recognition

Liveness Detection

Multi-model face and iris fusion liveness detection

Photo flood light

LED and IR dual Photo flood light, Two side NIR sources fill in light (850nm)

Video Output Format

MJPEG, YUV

Device Frame rate

> 25 Frames

Standoff Distance

35 cm to 65 cm

User Height Range

120 to 200 cm (when installed at 170 cm, real-time tracking)

FUNCTIONAL SPECIFICATION

User Interface

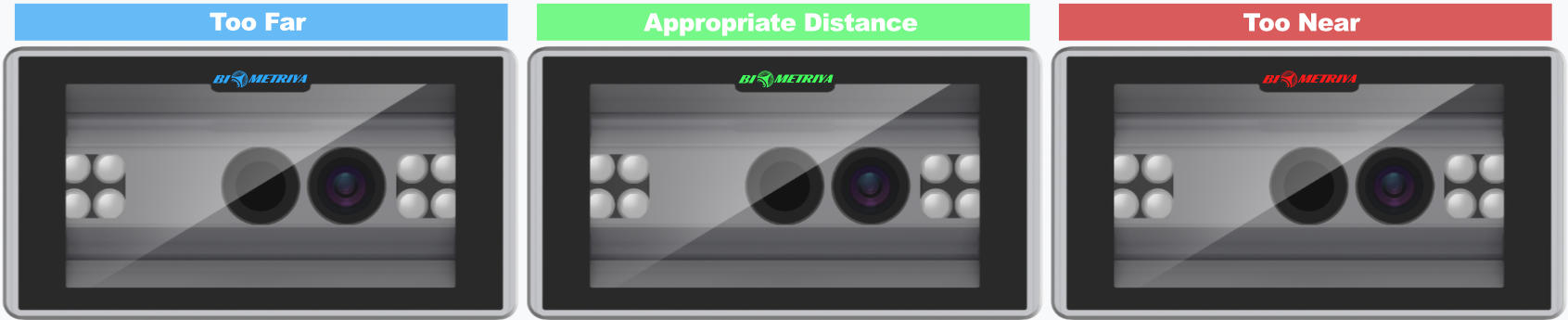

RED, GREEN & BLUE indicator lights. RED-too close, BLUE-too far & GREEN-appropriate distance

Operation System

Windows 7 and above, Android 5.0 and above, Linux

Systems Interfaces

USB 2.0 / USB 3.0

Integration Interface

C++ SDK

User Interaction

RED, GREEN & BLUE indicator lights. RED-too close, BLUE-too far & GREEN-appropriate distance.
Built in 1W speaker, which can play voice prompts

Mounting Options

Pole mount (Permanent, base stand) - Wall mount (Access control environment)
Desktop mount (Office desk, Counters etc.) - Turnstile mount (e-gate)

BIOMETRIC SPECIFICATION

Face Image Quality

Meets / exceeds ISO 29794-5, >120 px between subject eyes

Face Image Format

Conforms to ISO 19794-5 (JPG)

Iris Image Quality

Meets / exceeds ISO 29794-6

Iris Image Format

Conforms to ISO 19794-6 (RAW, BMP, PNG, JPG)

Face Mask

Acceptable

Performance

More than 25 frames per second

ENVIRONMENT AND OTHER

Power supply

Low DC power consumption. 5V -1A

temperature

-35°~60° C

Working humidity

10%~90%

Rotating Components

Angle sensor, DC motor

Weight

<1KG

Size

90.6 x 48.4 x 45.5 mm

Regulatory Approvals

CE, RoHS and FCC
